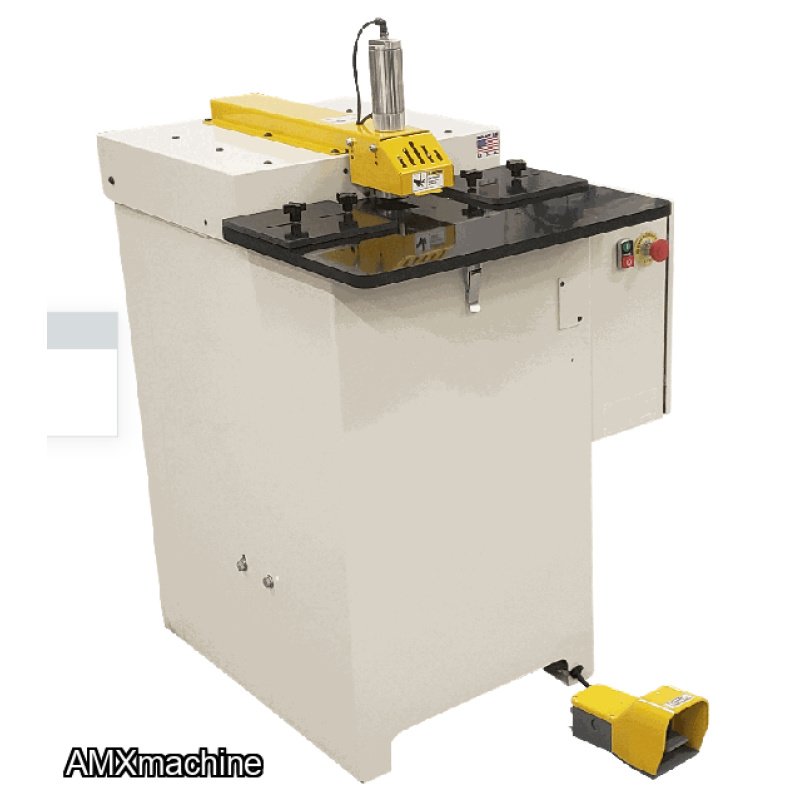

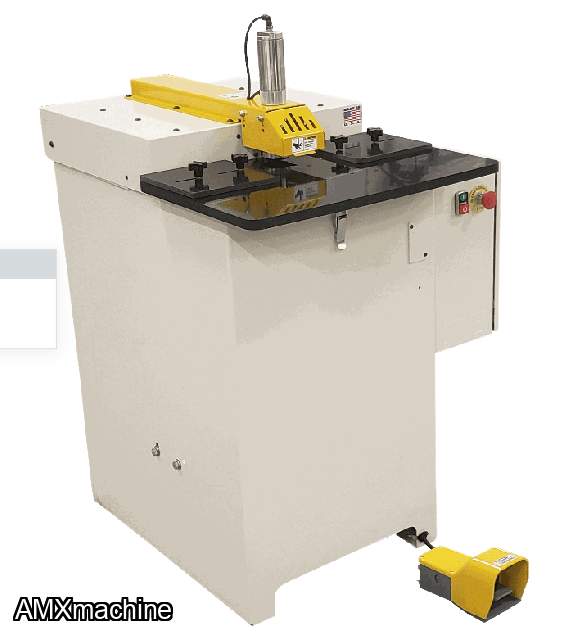

PARTE: 2RI-R2061 - 6° LOW ANGLE POCKET CUTTERTechnical Data and Specifications:
Description:
Iis an essential tool for crafting precise pocket holes in cabinet face frame assembly. Its innovative design, featuring a low 6° angle, serves to dramatically reduce joint misalignment during assembly, ensuring a seamless and strong connection by enabling the screws to draw the pieces together with greater precision.
This model represents a significant advancement in woodworking productivity. By eliminating the need for dowel boring, dowel and glue insertion, protracted clamping, and the common issue of joint misalignment, it delivers a remarkable up to 50% reduction in frame construction time. This means faster, more efficient work and a substantial increase in overall productivity.
Is not only a productivity powerhouse but also incredibly user-friendly. With its single-touch foot pedal operation, it simplifies the machine's use, making it accessible and intuitive for operators of all skill levels. This seamless operation further enhances its appeal, as it can be effortlessly integrated into your woodworking process.
Standard Features:
- 6° Low angle
- PLC controlled cycle
- Foot pedal operated
- Adjustable Material Stops
- Up to 2″ thick material
- Cycle Time: 1.75 – 2 Sec
- Tooling Included
Technical Data and Specifications:

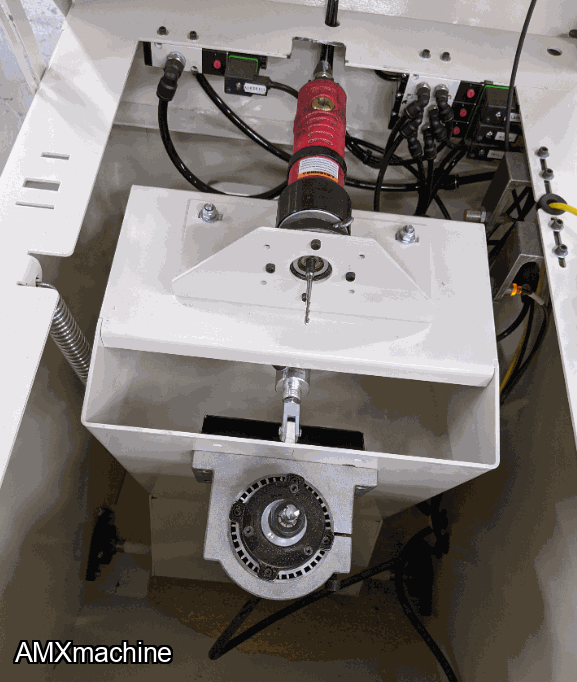

- Router Bit: 3/8” Solid Carbide, Rough Mill
- Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
- Router: 24,500 RPM, 11 A, 1.75 HP
- Drill: 31,000 RPM, 4.5 A, 7/8 HP
- Electrical: 110V 15A
- Air: 2 CFM at 80 – 100 PSI
- Work height: 36″
- Footprint: 27.75″ x 20.5″
- Table Area: 15.75″ x 23.75″
- Dust Port: 4″
Payments & Returns
- Payment Methods
- N/A
Post Message
Sign in to ask the seller a question.
-500x500.jpg)
AMXmachine1
PART: 2CK-ECT SERIES - DOUBLE END TENONER - 8 SPINDLES - 141” WIDE
PART: 2CK-ECT SERIES - DOUBLE
END TENONER - 8 SPINDLES - 141” WIDEThey are available with up to (8) spindles (4-per side) and come in widths from 51” to 141”. These double end tenoners are ideal for door, furniture, & window production and more. The ECT series can be customized for your specific needs with a wide range of processing units and features. The ECT are available as a stand-alone solution or can be purchased in a line for processing all four sides of a workpiece autom...
-500x500.png)
AMXmachine1

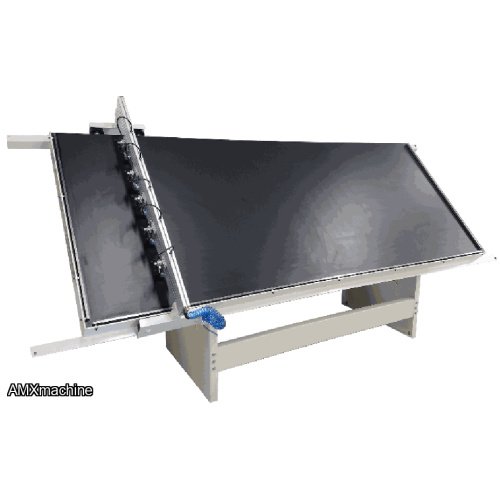

FACE FRAME ASSEMBLY TABLE
PARTE: 2RI-R215E/A - FACE FRAME ASSEMBLY TABLEDescription:Screwed together face frame construction provides for the most efficient and economical methods for joining frames. Flush and tight joint construction is provided for all types of wood. Elimination of dowel boring and insertion, clamping time and joint misalignment provide up 50% time reduction in frame production. The ability to disassemble and reposition a joint creates less loss of material in case of errors in the joint location. No ...
-500x500.png)
AMXmachine1
DUST COLLECTOR - 3 HP
PARTE: 2MK-CY/3.C - DUST COLLECTOR - 3 HPThe Dust Collector was developed for cabinet shops with high production. Collects dust of up to 3 machines simultaneously. A light weight and easily transportable machine.Technical InformationMotor Spec1 Phase 220V 3HP 15AAirflow Capacity1941 CFMSound Rating80dbFan Diameter14' / 356 mmNumber Inlet3"Inlet Size4"Filtration1- micronCartridge Filtration size13" x 31"Cartridge Bag Size14.5" x 29.5"Drum Size31 GalDrum Bag Size20" x 43"Machine Dimensions45" x 2...
-500x500.png)
AMXmachine1

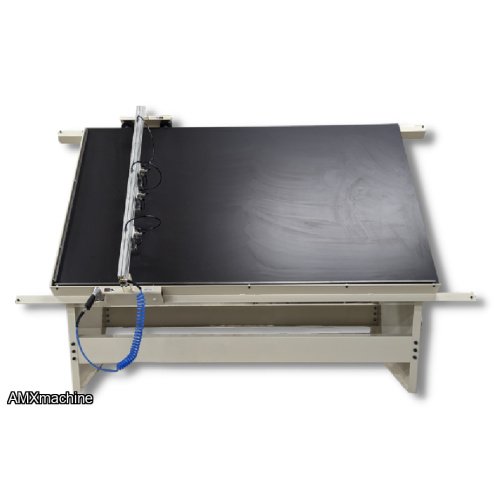

FACE FRAME ASSEMBLY TABLE
