ID: 2628
Open
Description

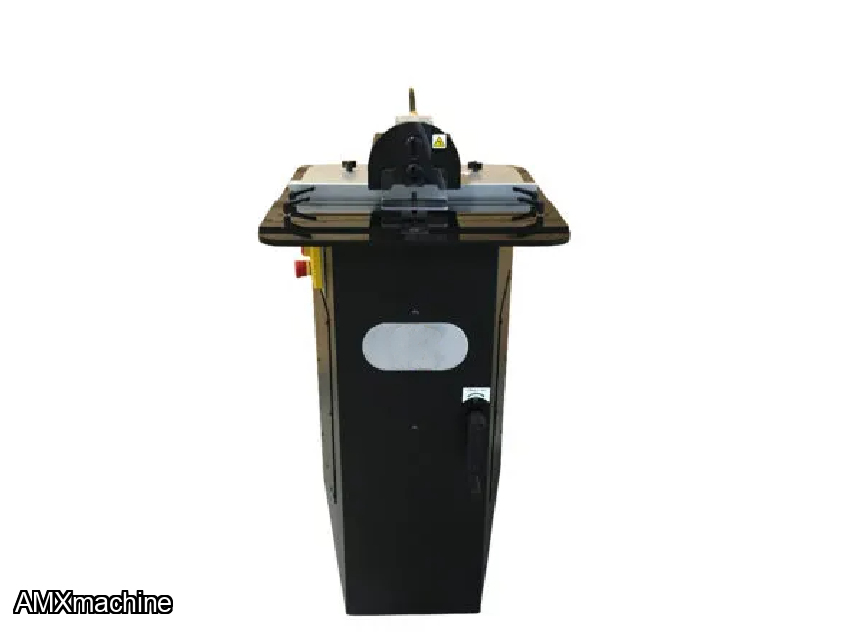

PARTE: 2SS-SPM301 - SCREW POCKET MACHINE - 1 DRILL
Unlike others of its kind, it features cam-driven action providing fast, smooth cutting action under complete mechanical control throughout the machine cycle. it's mechanical linkage allows the pilot drill and router bit to cut at the same time, reducing cycle time without sacrificing cut quality. Simple back fence, stop rail, and depth adjustment make setups and adjustments quick and easy. The built-in analog depth gauge allows changing material thickness a breeze and can be completed within seconds. When it comes to manufacturing, it is unmatched. Manufactured completely in the USA, showcases heavy duty construction; a machine truly built to be a work horse and requires only standard 110 VAC and 1-2 CFM compressed air at 80 PSI.
| Weight | 294 lbs |
|---|---|
| Dimensions | 27 x 34 x 49in |
| Router Motor | 2 1/4 Hp |
| Drill (Compact Router) | 7 amp/16,000-27,000 RPM |
| Vacuum Requirement | 220 CFM, 3" Hose Connection |
| Air Requirement | 1-2 CFM at 80 PSI |
| Dimensions (Shop) | 22"W x 44"H x 26"D |
| Country of Origin | USA |
| Screw Pocket Angle | 6° |
