Description

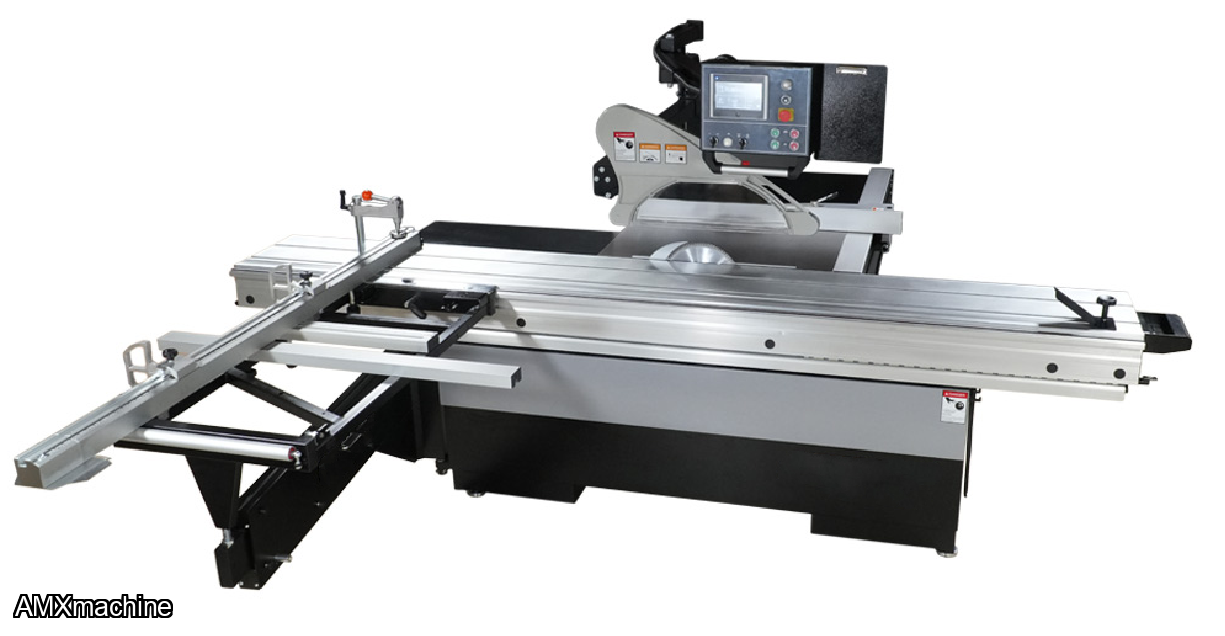

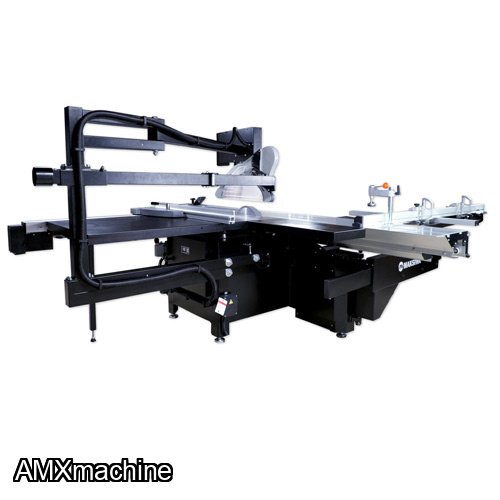

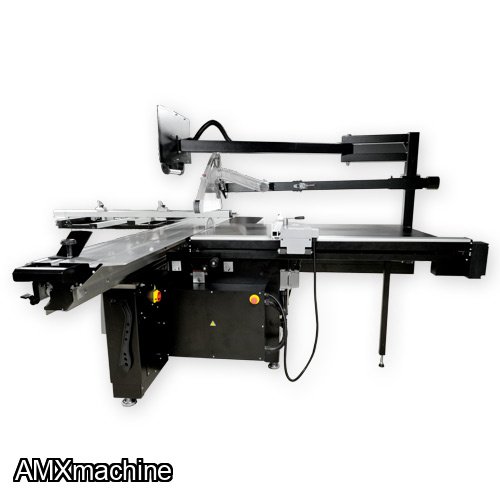

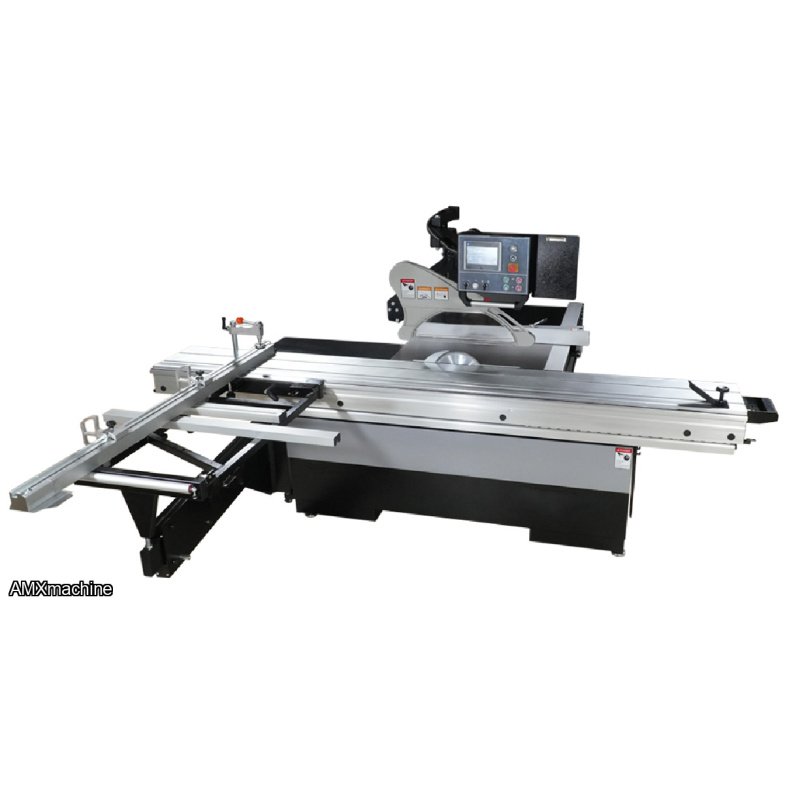

PARTE: 2MK-BMD.3200.IR - SLIDING TABLE SAW- 10 HP

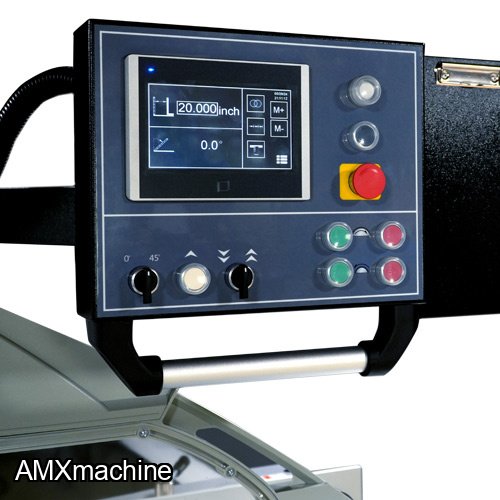

Is a high-performance sliding panel saw designed for woodworking professionals who demand precision and efficiency. Featuring a powerful 10-horsepower motor, advanced CNC-controlled rip fence, and an intuitive touchscreen interface, this machine delivers exceptional accuracy and control for a variety of cuts.
Engineered with a durable, industrial-grade frame, ensures long-lasting stability and reliability, while integrated safety features and a built-in dust collection system create a cleaner, safer work environment. Whether you’re handling large panels or detailed cuts, this versatile saw excels in all applications. Plus, with a two-year warranty and responsive US-based customer support, Maksiwa provides peace of mind for your investment.
| Technical Information | |
|---|---|
| Main Motor | 10 HP/ 7.3 Kw |
| Main Blade Speed | 3,000/4,000/5,000 RPM |
| Max Blade Diameter | 14" | 355mm |
| Main Blade Arbor | 1 3/16" | 30mm |
| Main Blade Max cutting Height at 90° | 4" | 101 mm |
| Main Blade Cutting Height at 45° | 2 3/4" | 70mm |
| Scoring Motor | 3/4 HP / 8000 RPM .75 kw |
| Scoring Blade | 4 3/4" | 120mm |
| Scoring Blade Arbor | 25/32" | 20mm |
| Scoring Blade Type | Conical |
| Max Ripping Capacity | 51" | 1300mm |
| Crosscut Capacity | 126" | 3200 mm |
| Crosscut Fence Capacity Closed/Open | 78" / 120" | 1981mm / 3048 mm |
| Machine Working Dimensions (LxWxH) | 132" x 137" x 75" | 3352 x 3479 x 1905 mm |
| Cast Iron Table Dimension (LxWxH) | 35" x 21" x 34" | 896 X 548 X 864 mm |
| Sliding Table Dimension (LxW) | 126" x 14 " | 3200 x 358 mm |

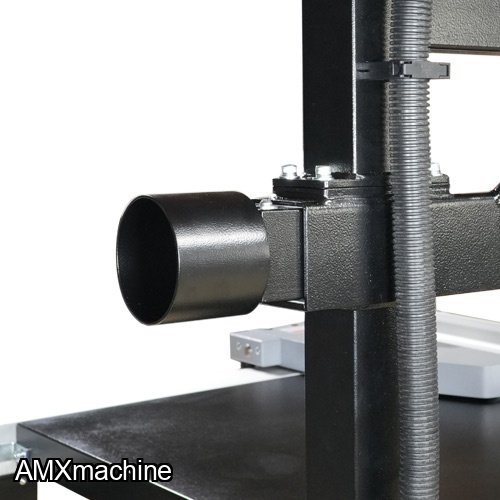

| Dust Collection Port (2) | 4" | 100mm |
| Minimum Dust Collection Requirements | 1000 CFM | 28m/min |
| Electrical Specs | 3 Phase 220V 40 Amps 60 Hz |
| Main Body Crate Dimensions (LxWxH) | 83" x 45" x 45" | 2108x 1143 x 1143 mm |
| Main Body Crate Weight Net/Gross | 1470 LBS | 667 KGS |
| Sliding Table Crate Dimensions (LxWxH) | 133" x 18" x 15" | 3378 x 457 x 381 mm |
| Sliding Table Crate Weight Net/Gross | 274 LBS | 124 KGS |
