Description

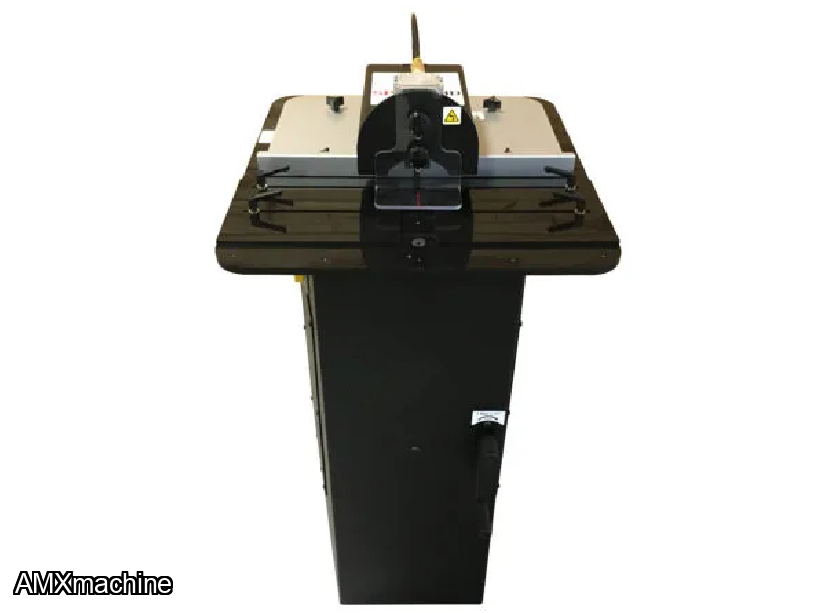

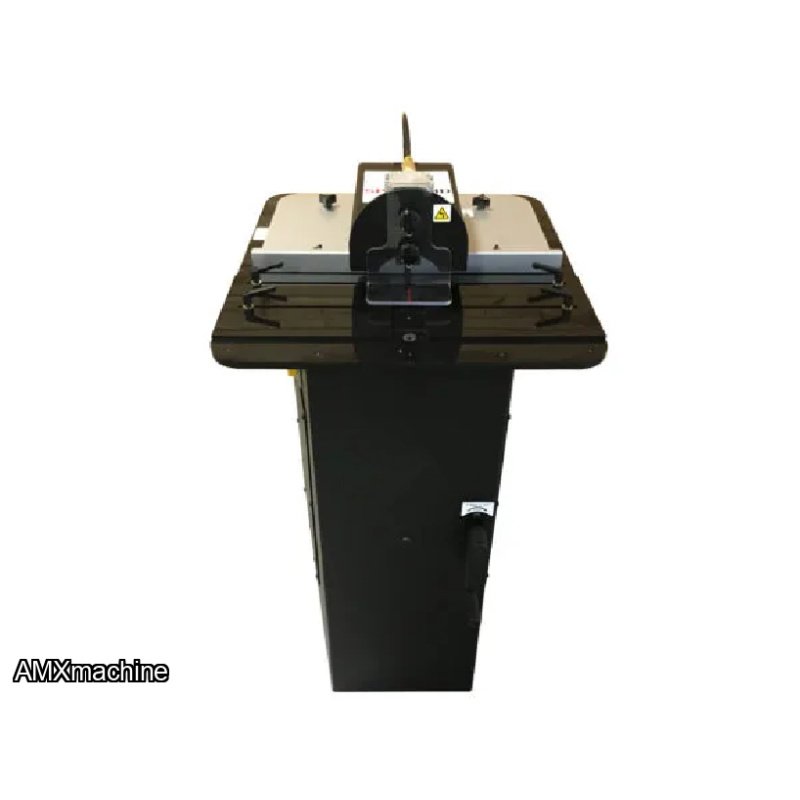

PARTE: 2SS-SPM301HD - SCREW POCKET MACHINE - 1 DRILL
Pocket-hole joinery for high production woodworkers made easy with our Screw Pocket Machine. This machine allows for simultaneously drilling a pilot hole and machining a screw pocket in under a second.
A two-in-one motion simultaneously drills a six degree pilot hole and machines a screw pocket in under a second on most wood species. Features a heavy-duty, direct drive continuous electric spindle motor, allowing for continuous pocketing production. Features cam-driven action providing fast, smooth cutting action under complete mechanical control throughout the machine cycle. The new pilot air drill and end mill produce superior low-angle 6 degree screw pockets. Requires standard 220V and 6.2 CFM at 90 PSI based on 25% load factor, 25% duty cycle.
Additional Accesories

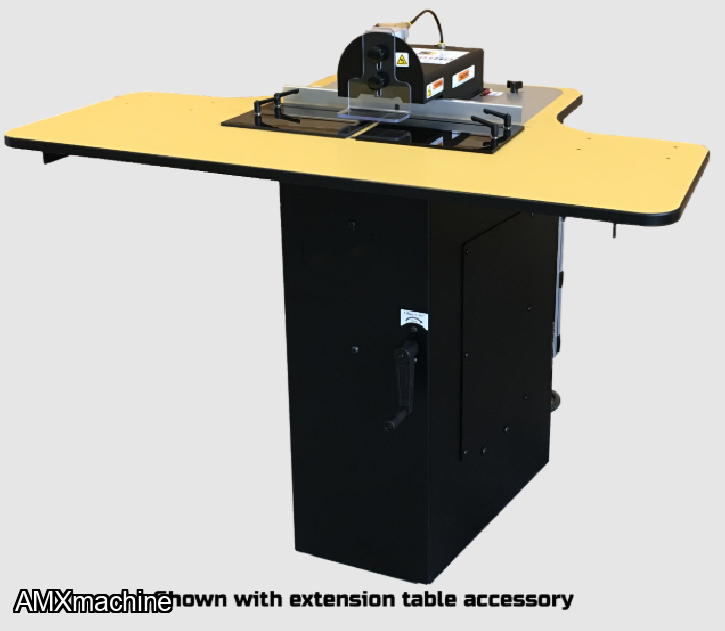

An extension table can be added
| Weight | 350 lbs |
|---|---|
| Dimensions | 32 x 22 x 44in |
| Crated Dimensions | 36" × 28" × 49" |
| Vacuum Diameter Required | 3" Hose Connection |
| Vacuum CFM Required | 220 CFM |
| Air Requirement | 6.2 CFM at 90 PSI |
| Spindle Motor | 5 amp/18,000 RPM, 3/8" (ER20) Collet |
| Screw Pocket Angle | Six Degrees |
| Spindle Motor Amps | 5 amps |
| Spindle Motor Collet | 3/8” Collet |
| Spindle Motor Max RPM | 18,000 |
| Air Drill | .7HP |
| Air Drill Collet | 1/4" Collet |
| Air Drill Max RPM | 25,000 |
| Screw Pocket Depth Range | .5" to 1.5" |
| Country of Origin | USA |
