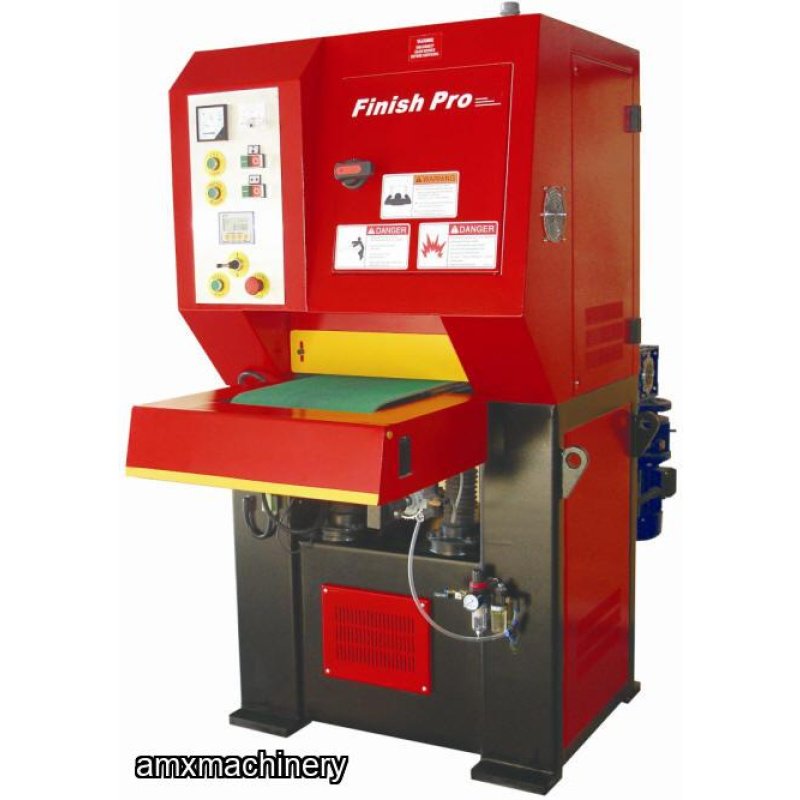

PARTE: 2MA-FP-2560CB – LIJADORA - CALIBRADORA DE METAL – 25” ANCHO - 2 LIJAS
AMXmachine
Description
PARTE: 2MA-FP-2560CB – LIJADORA - CALIBRADORA DE METAL – 25” ANCHO - 2 LIJAS
NUEVA CON GARANTIA
Standard Features:
Motorized Table Lift, with digital readout
Variable Speed Conveyor
Conveyor Forward & Reverse
Belt Safety Overtravel Switches
Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust the tracking system when running extremely out of parallel belts
Heavy Duty Table Support
Double Infeed & Outfeed Pinch Rolls with protective guards
Conveyor Belt Tracking System
Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
Table Height Digital Readout
Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose
Air tensioning of belt for accurate tensioning & compensation of belt stretch
Quick release sanding head support for fast belt change
Dust collection hood with 4” outlet is located adjacent to abrasive head in sanding area
Emergency stops from almost any point
Noise level bellows 85 dba
Operation manual, control tags, danger signs, and warning labels in English on machine
208/230 or 460 Volt, 3-Phase
One year Industrial Warranty for parts
NOTE
Prices are for 208-230 VOLTS
Total amps 220 @ 230/3/60
COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI
CAUTION:
If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.
OPTIONAL:
WET DUST COLLECTORS use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan. Particles sink to the base of the tank where they can easily be removed by raking into a provided container. Normal tap water is used, there are not filter bags to be changed. Water level is automatically controlled when unit is connected to a water supply. All units are equipped with explosion relief door and sound silencer.
Specifications: Model FP-2560CB
Max. Part Width 24”
Abrasive Belt Size 25” x 60”
Contact Roller Size for abrasive belt 8” Dia.
Contact Roller size for Scotch Brite belt 8” Dia.
Brush head size 8” Dia.
Passline Height 31” – 37”
Max. Thickness Capacity 6-1/8”
Conveyor Drive Speeds 8-40 FPM
Infeed Conveyor Length 20”
Dust Collector Capacity 3,500 CFM
Main Motor for first abrasive head 15 HP, 230V or 460V, 3-Ph
Maim Motor for second brush head 15 HP, 230V or 460V, 3-Ph
Conveyor Motor 1.5 HP, 230V or 460V, 3-Ph
Table Lifting Motor 1 HP, 230V or 460V, 3-Ph
Net Weight, approx. 4,350 LBS
Machine Dimensions, LxWxH 116” x 63” x 69”
OPTIONAL ACCESSORIES
Wet Dust Collector # WDC-FP25, 5 HP, all stainless steel construction
Heavy Duty Ducting Package # HDDP-FP-1440
