PART: 2RS-TRIO-CR42-E – ELECTRO MAGNETIC SEPARATOR – HEAVY DUTY – TRIO CR42

PART: 2RS-TRIO-CR42-E – ELECTRO MAGNETIC SEPARATOR – HEAVY DUTY – TRIO CR42

New with warranty

TRIO Model CR42

Self-Cleaning Electro Magnetic separator complete as follows

Heavy Duty Steel Frame

42" x 48" air cooled magnet with wound coils and class H insulation

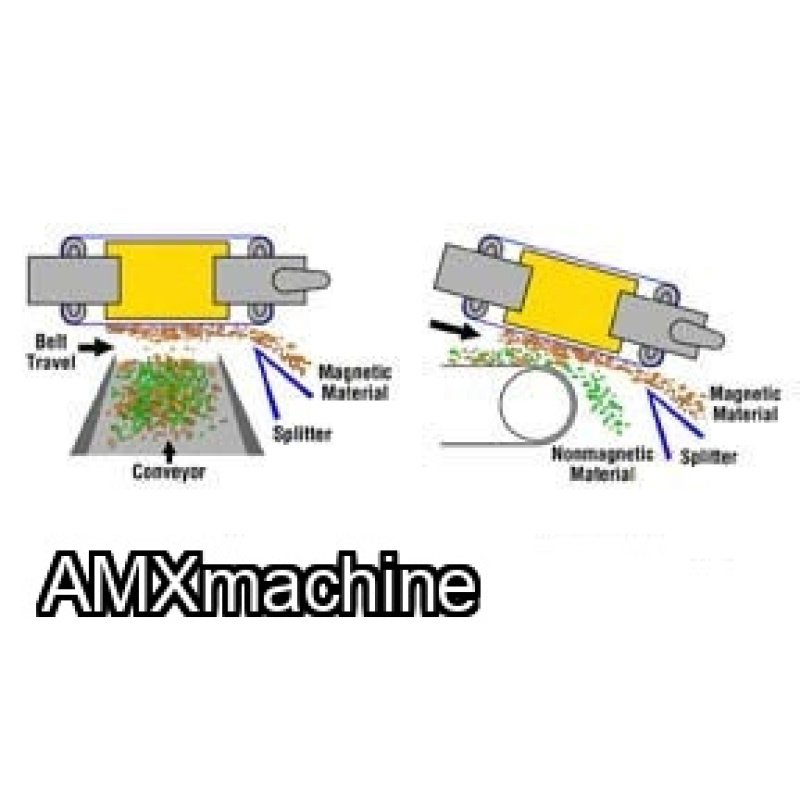

Designed for overhead suspension (4) contact points

5 HP TEFC 1800-RPM Electric Motor

Class I Shaft Mount Gear Reducer

Belt Drive complete with guard, drive belts, sheaves and bushings

Self-Cleaning Belt complete with HD Stainless Steel Amor Cladding

Magnet Rectifier

2 Drum Pulleys with tensioners

Weight: 6200 LBS

Designed for heavy-duty applications and can be supplied in either electro or permanent magnetic arrangements.

TheTrio CR and CRS series separators use an electrically powered magnetic field which can be easily adjusted using an AC-DC converter.

The CR series, feature self-cleaning stainless-steel-clad conveyor belts which can collect and discharge materials quickly to their desired locations.

TheTrio CRP and CRPS series permanent magnets do not require any electrical power to generate a magnetic field.

The CRP series are also equipped with stainless-steel-clad conveyor belts which can be configured to enable self-cleaning functionality and driven either by electric or hydraulic power.

AllTrio can be installed on a stationary crushing production line or incorporated onto a portable working station.

Features:

- A robust and proven design

- Able to feature either electro or permanent magnet configurations

- Self-cleaning functionality*

- Oil lubricated heavy-duty gearbox*

- Bolted replaceable stainless-steel belt armour*

- Machined crown and vulcanized lagged head pulley*

- Heavy duty fabricated tail pulleys*

- Standard XT style bushings*

- Service is available through the Weir Minerals global service network
