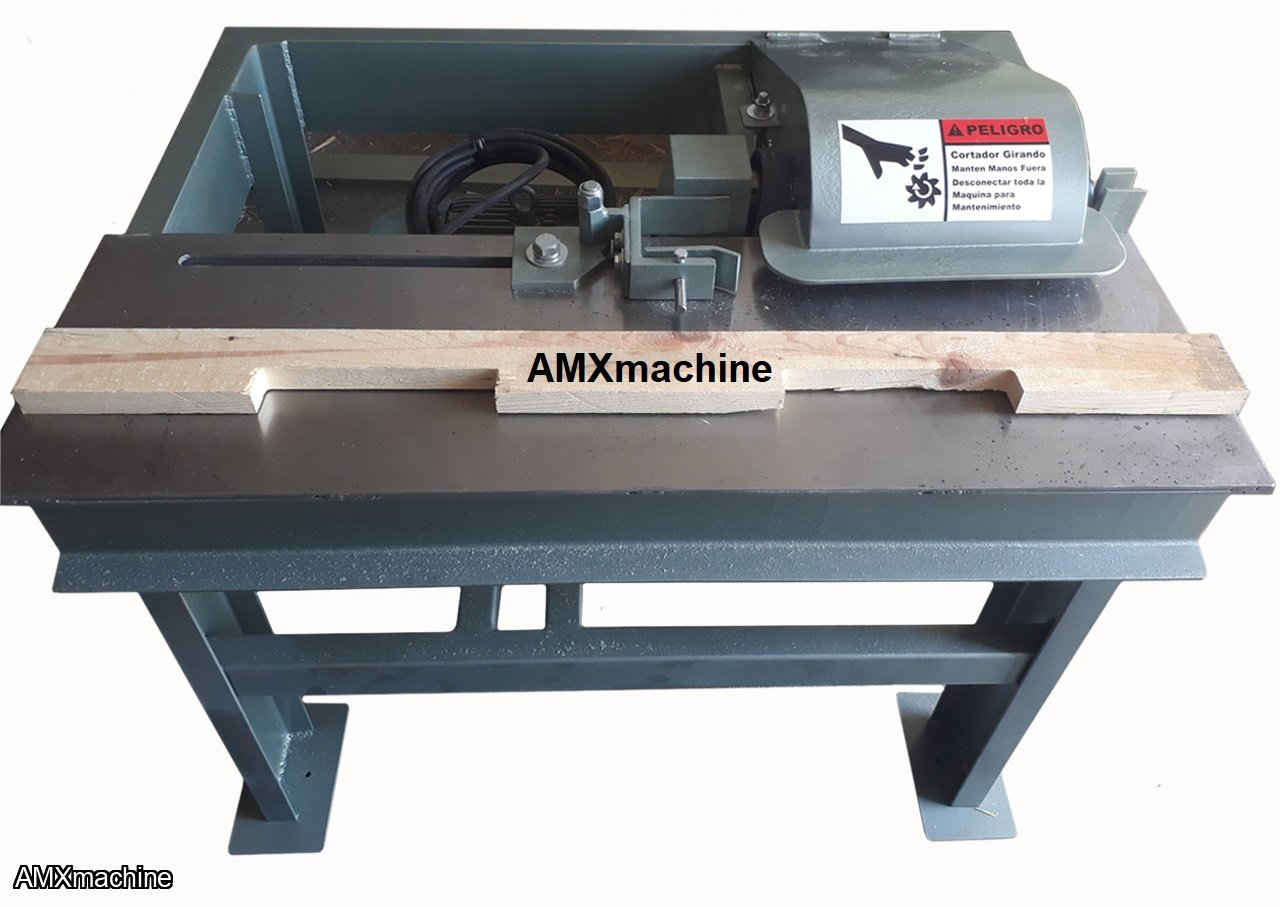

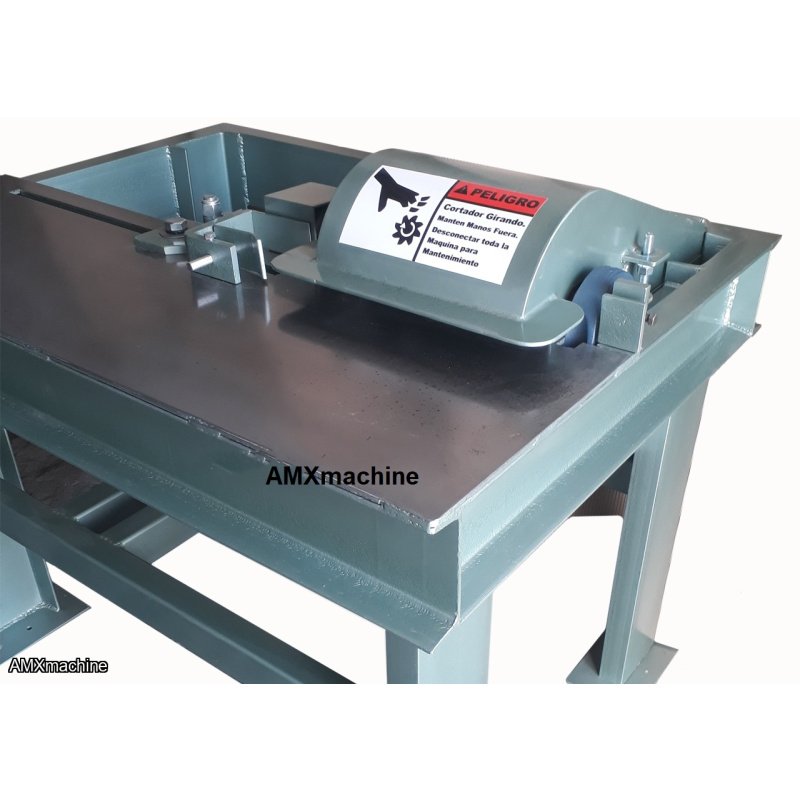

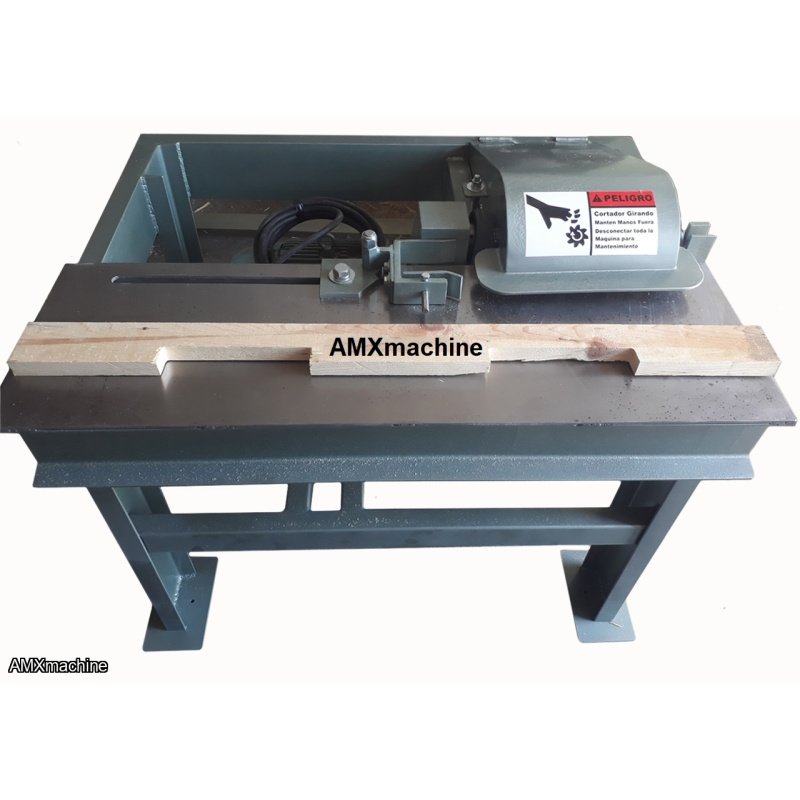

PART: 1AM-1150 – PALLET NOTCHER – 9” LENGTH – 4 KNIVE CUTTERHEAD - HEAVY DUTY
AMXmachine
Description
PART: 1AM-1150 – PALLET NOTCHER – 9” LENGTH – 4 KNIVE CUTTERHEAD - HEAVY DUTY
New with warranty – 6-month warranty on manufacturing defects on mechanical parts only
Motor 10 HP, 220/440V, 3 phase - connected to 220V

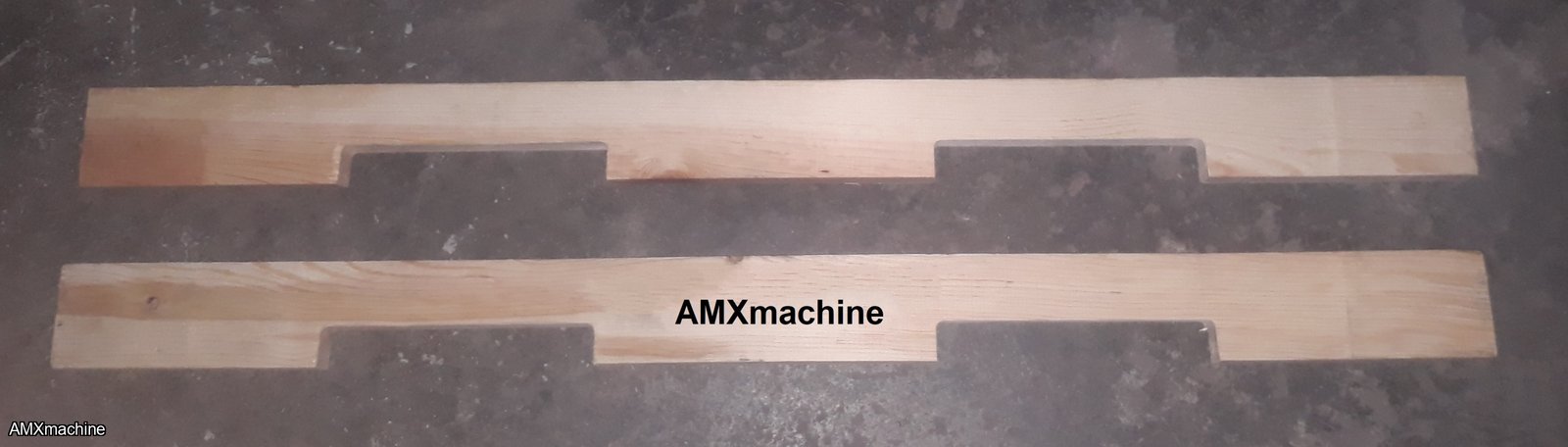

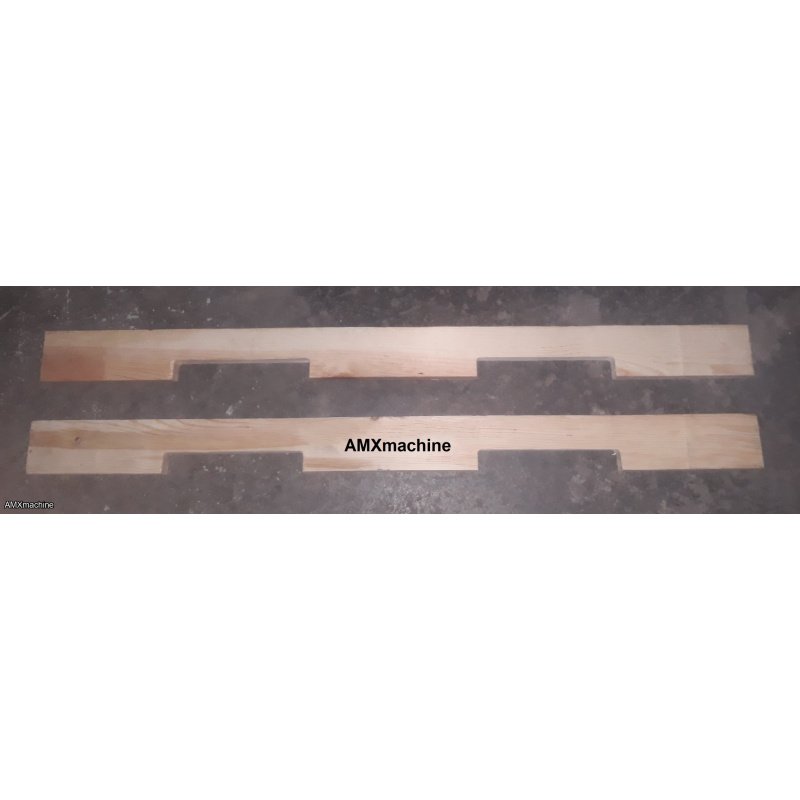

Maximum notcher size 9” long x 2-1/2” height x 1-5/8” depth
400 to 800 notcher/hr. approximate

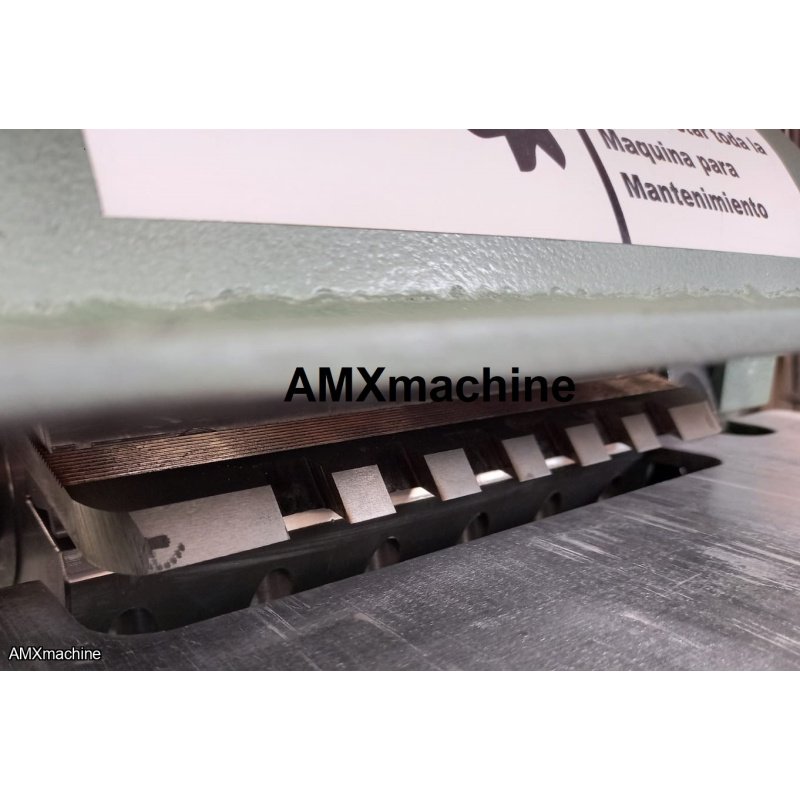

Cutterhead with HSS knives installed - New design
Video: https://vimeo.com/805816822
Machine dimensions: 48” length x 36” width x 40” height - Weight: 662 lb.

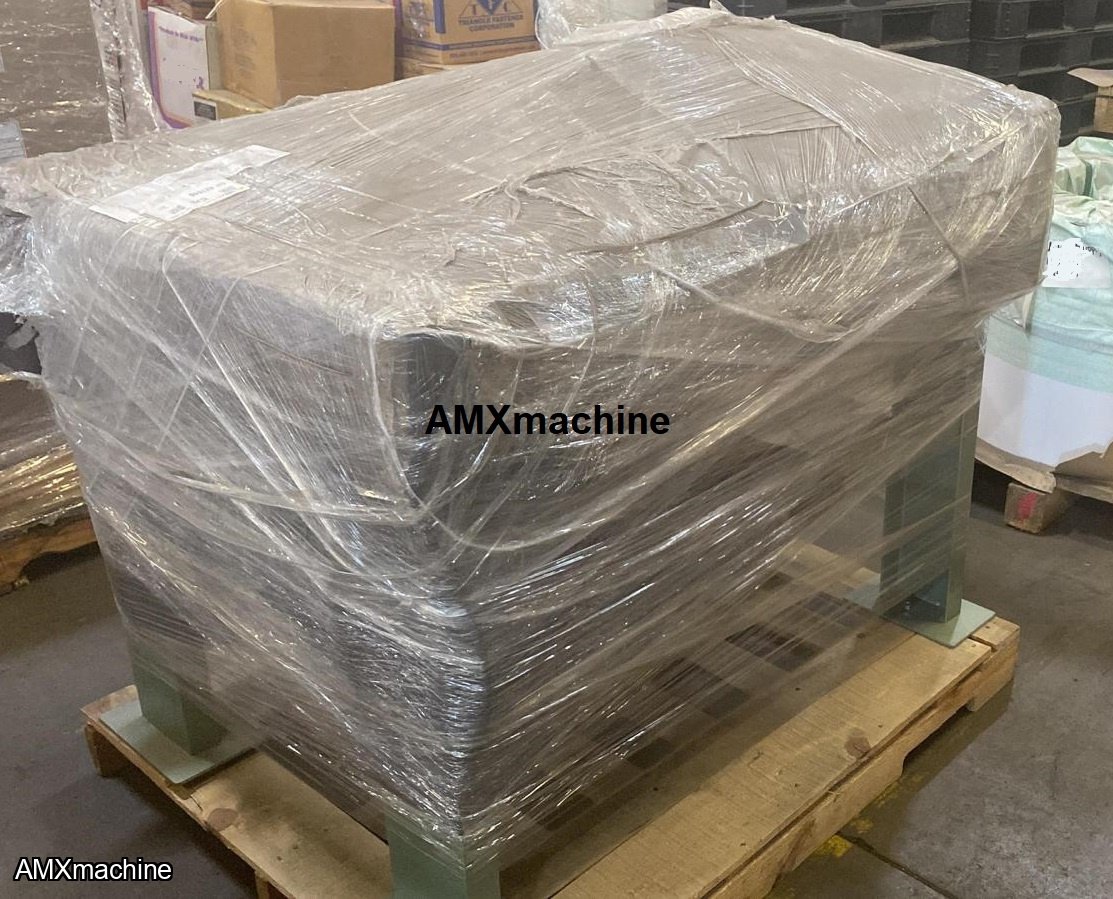

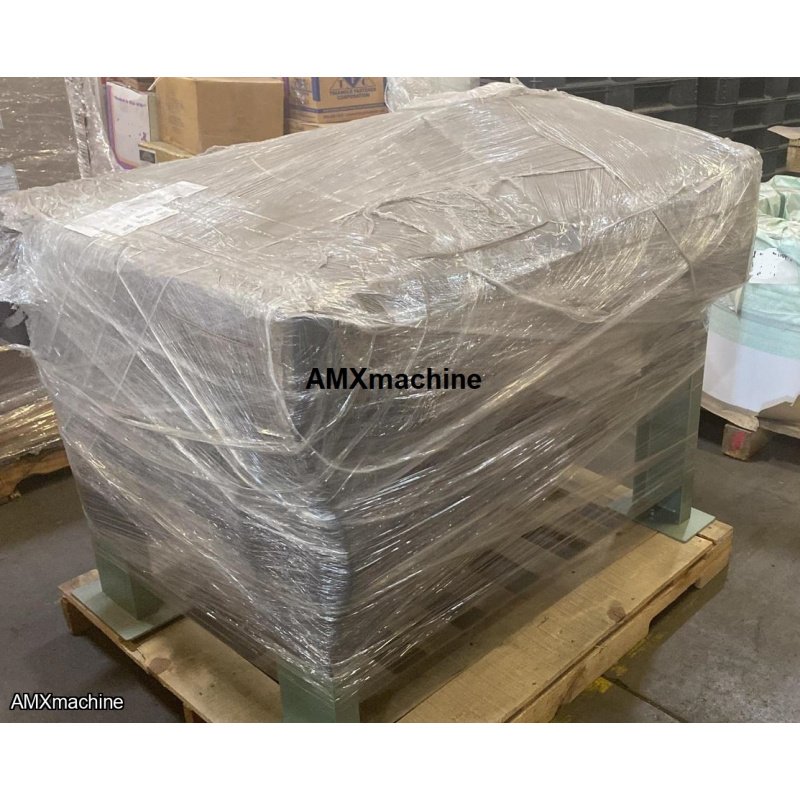

Shipping dimensions: Machine palletized: 48” length x 40" width x 44” height - Weight: 720 lb.
Optional:
Motor 10 HP, 220V, 1 phase
Please contact us for more details
