ID: 2640
Open
Description

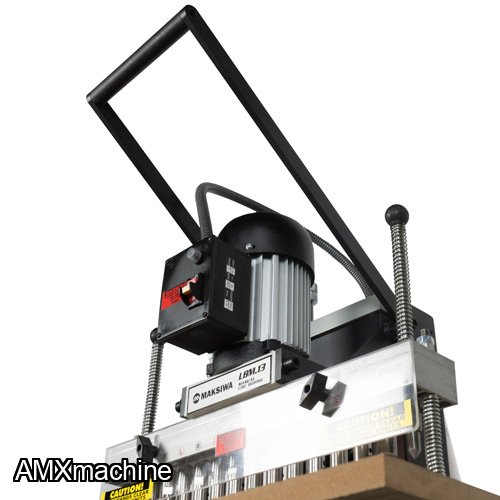

PARTE: 2MK-LBM.13 - LINE BORING MACHINE - 1 HP
Loaded with features such as the lubricated aluminum head, heat treated steel gears, 1 HP motor and stainless-steel spindles. These machines offer carpenters and woodworkers the opportunity to work with the most innovative bench top boring machine currently on the market!
| Technical Information | |
|---|---|
| Motor | 1HP 110V 1 Phase 10A 60 HZ |
| Prewired | 110 V, Single – Phase – 10 A / 5 A |
| Table Size | 31"x 15 1/2" |
| Spindle Speed | 3.450 RPM |
| Fence Stops | 2 |
| Expandable Fence Guide | Max 89" |
| Operation | Manual |
| Floor to Table Height | 34" |
| Max. Depth of Stroke | 2.5" |
| Length of Fence | 61.5-5-91.5" |
| Number of Spindles | 13 (6 Left and 7 Right) |
| Distance Between Spindle Centers | 32 mm |
| Shipping Weight | 155 Lbs |
