Description

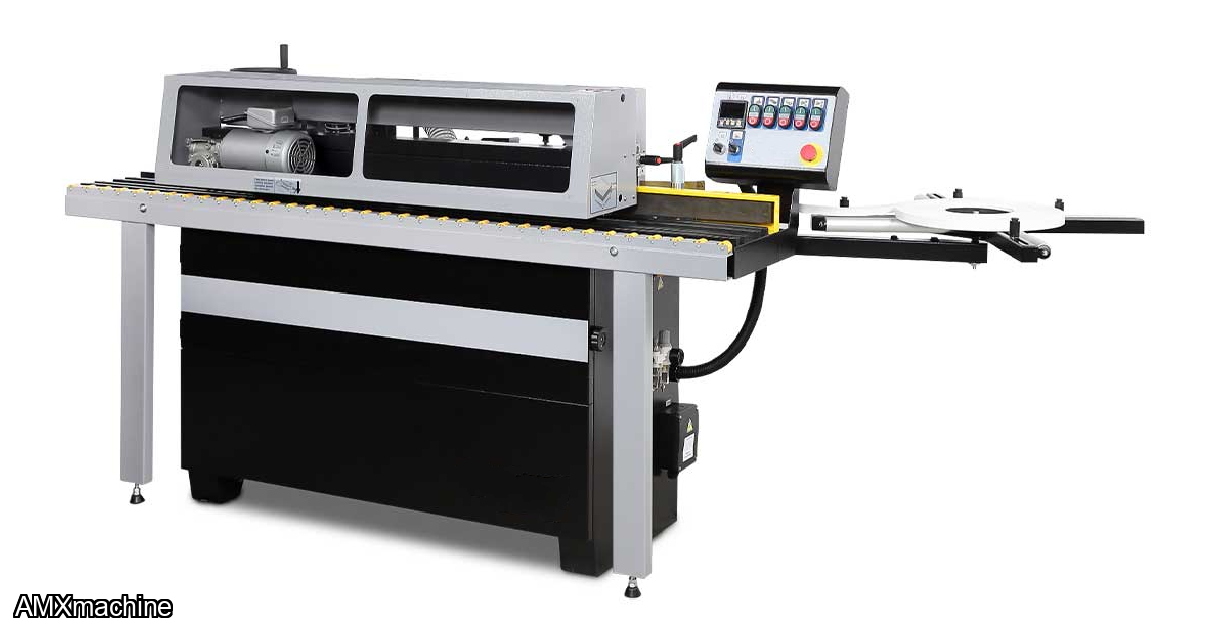

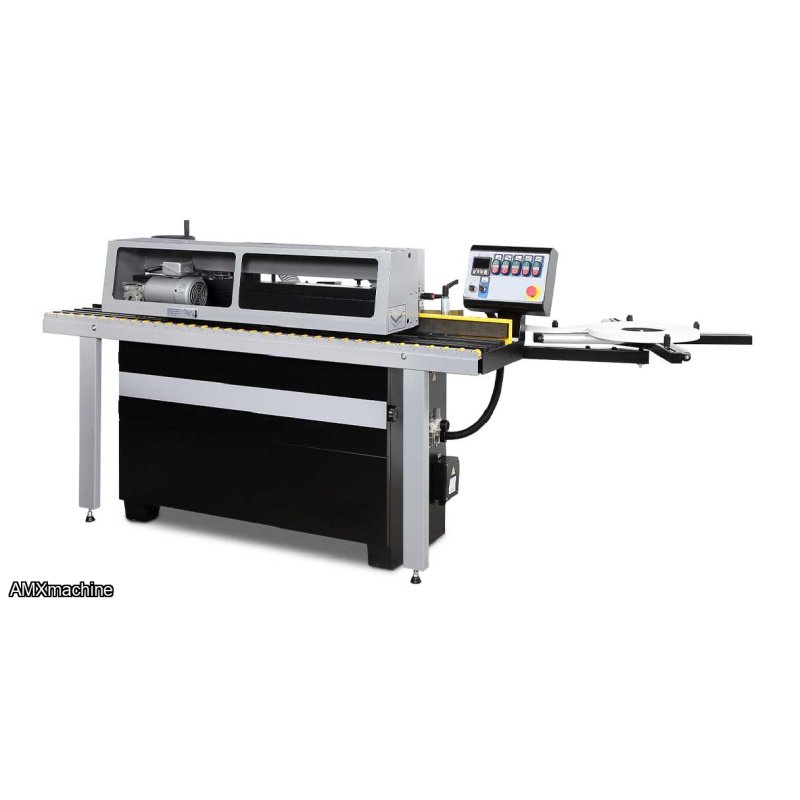

PARTE: 2MK-CBC.T - EDGEBANDER
- Machine frame made out of steel, single block base with superior stability.
- Anodized aluminum outfeed fence.
- 1 Phase 220V
- Table Dimension 2000 mm x 265 mm
- Tape Thicness 0.4 mm to 3 mm
- Panel Thicness 12mm / 45mm

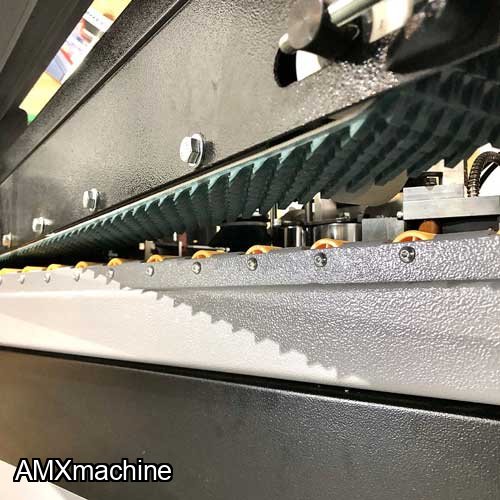

- Automatic Panel Feed System

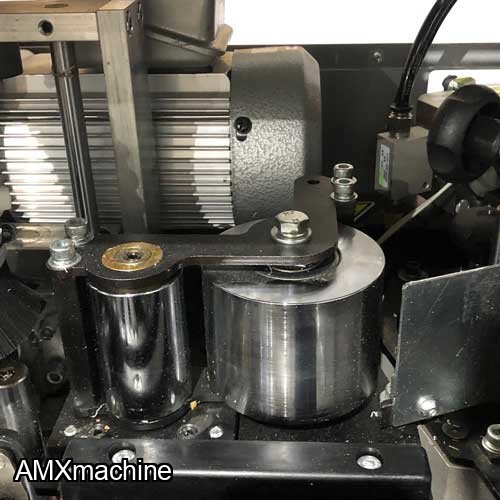

- Dual Pressure rollers
- Melamine, PVC, ABS, PP, Veneer and Laminate
- Pre-Heated Infeed Fence
- Individually adjustable Flush Trimming
- Digital Temperature Control
- Pre-heated infeed fence
- Front and back end Trimming
- Top and Bottom Flush Trimming

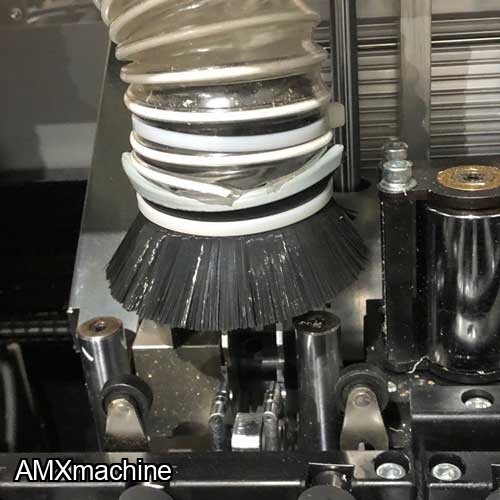

- Dual Buffing Unit
- Extendable Panel Support Rail
- Push button Control panel
| Automatic Feeding speed | 16ft/MIN | 5M/MIN |
| Panel thickness Min/Max | 31/64" - 1 3/4" | 12 - 45 MM |
| Edgebanding thickness | 0.0157" - 0.118" | 0.4 - 3 MM |
| Glue Pot Capacity | 2 Lbs | 1 kg |
| Max Edgebanding Height | 2" | 50 MM |
| Minimum panel width | 4 3/4" | 120 MM |
| Minimum panel length | 9 7/16" | 240 MM |
| Extendable Panel Support Rail Length | 78 21/32" | 1998 MM |
| Extension table Max Width | 12" | 310 MM |
| Size of Dust Collector Ports (2) | 4" | 100 MM |
| Minimum Dust Collection Requirements | 700 CFM | 20M/MIN |
| Air Pressure Requirement | 6 SCFM @ 100 PSI | 7 kg/cm2 |
| Edgebanding coil Support Diameter | 31 1/2" | 820 MM |
| Recommend Glue Temperature Range | 356°F - 410°F | 180°C - 210°C |
| Glue Type | Pellet - Granulated Hot-Melt | Pellet - Granulated Hot-Melt |
| Max. machine dimensions (LxWxH) | 112"x 63"x 51" | 2844 x 1600 x 1295 MM |
| Machine weight | 849 LBS | 385 KGS |
| Shipping dimensions (LxWxH) | 86" x 36" x 57" | 2184 x 914 x 1448 MM |
| Shipping weight | 1025 Lbs | 465 Kgs |
| Motor/Electrical | Specs |
|---|---|
| Electrical Requirement | 1 Phase 220V 30 Amps 60 Hz |
| Conveyer Motor | 3/4HP(0.55KW) |
| Flush Trimmer Motor | 3/4HP(0.55KW) |
| End Trimmer Motor | 1/4HP(0.18KW) |
| Glue Spindle Motor | 1/3HP(0.25KW) |
| Top Buffing Motor | 1/4HP(0.18KW) |
| Bottom Buffing Motor | 1/4HP(0.18KW) |
| Sound Rating | 80 dB |
