Description

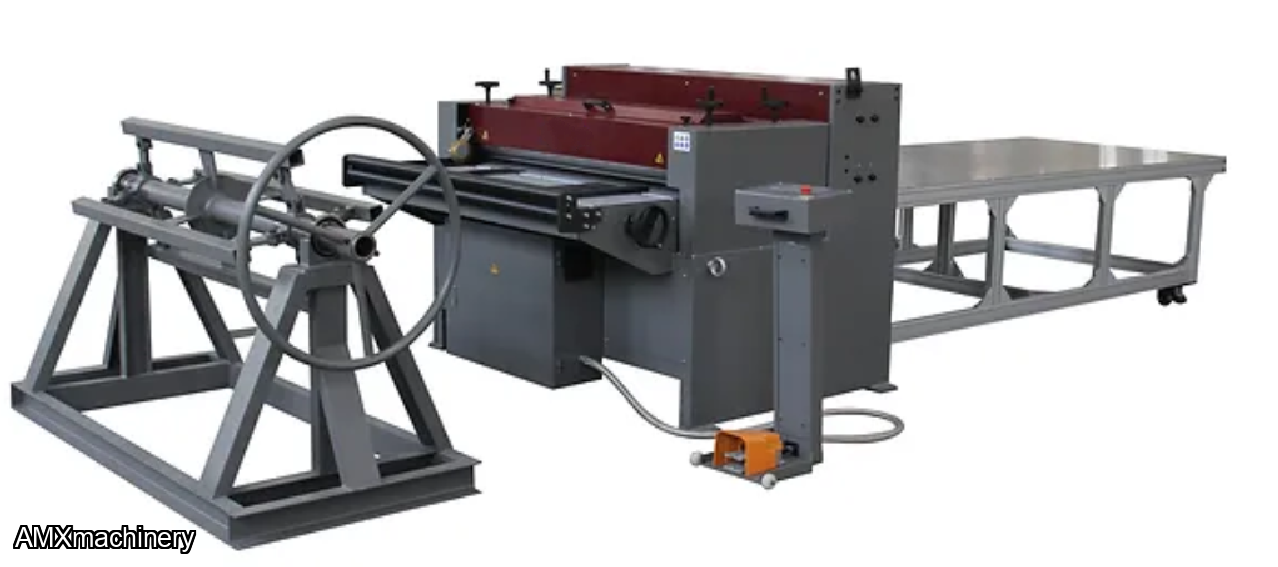

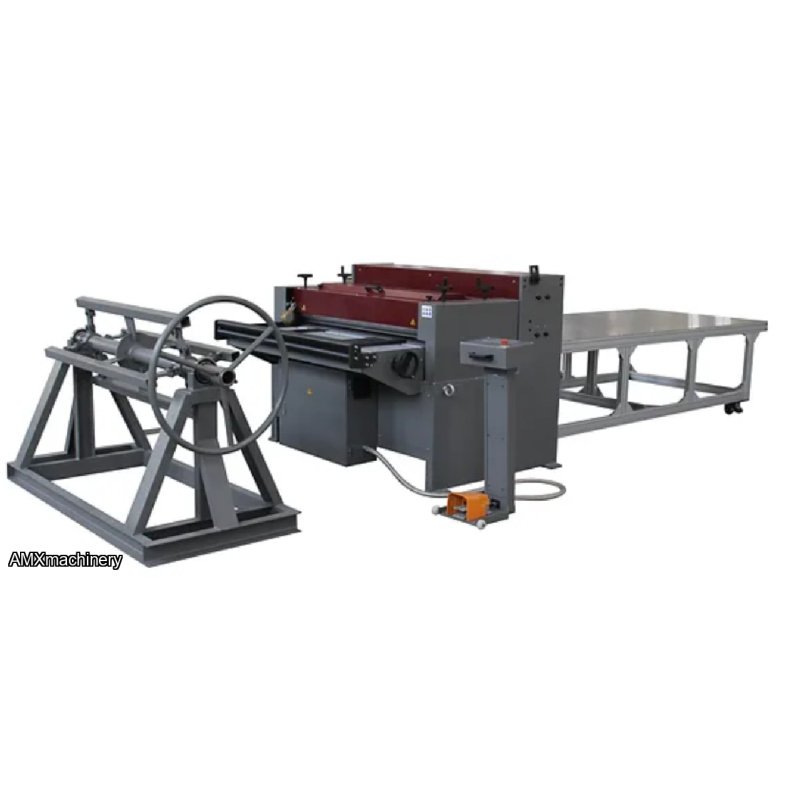

CORTADORA DE METAL ESTILO GANG PARTE: 2GM-PS-4816GT
48” x 16 Ga, Gang Type Metal Slitter, Powered Slitter, 220V,1 phase
with NC programmable cut to length, 5” touch screen
- ISO 9001 certified
- American design and Taiwan quality machine
- Slit and cut to length in one unit
- NC programmable cutting length, 100 job memory feature
- Single cycle Mode-manual shearing with foot pedal when programmed length is reach for each cut.
- Auto cycle mode-shearing will auto cycle the programmed cut lengths.
- Easy removal of slitting blades for cut to length operations without slitting.

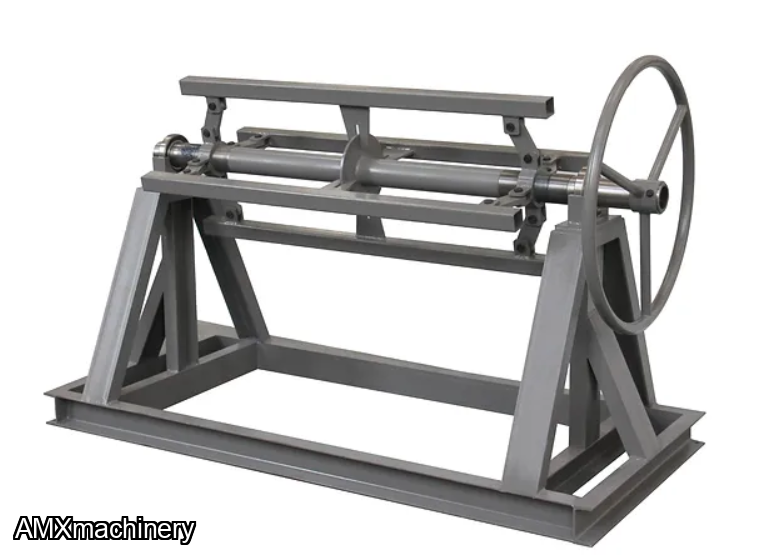

- feed the sheet metal from the manual decoiler to cut to length without slitting blades
- 5” Omron touch screen
- 3-1/8” diameter shafts mounted in precision ball sealed bearings
- Slitting blades are dual edged
- Safety type foot pedal control
- One year warranty for parts
- Comes with 6 sets of slitting blades to slit max 7 trips, change it to 7 strips
- full length finger guard
- Removable safety foot pedal control
- One set of upper & lower shearing blades
Specifications: | PS-4816GT |
Slitting and shearing capacity: width x thickness mild steel(hot roll) Tensile 60,000PSI stainless steel & cold roll, tensile 85,000PSI soft aluminum, tensile 28,000PSI min. thickness Max. slitting length |
48”x16Ga 48”x20Ga 48”x12Ga 30Ga 20ft, NC programmable |
Shearing blade length | 50” |
Shearing blade rake angle | 2 degree |

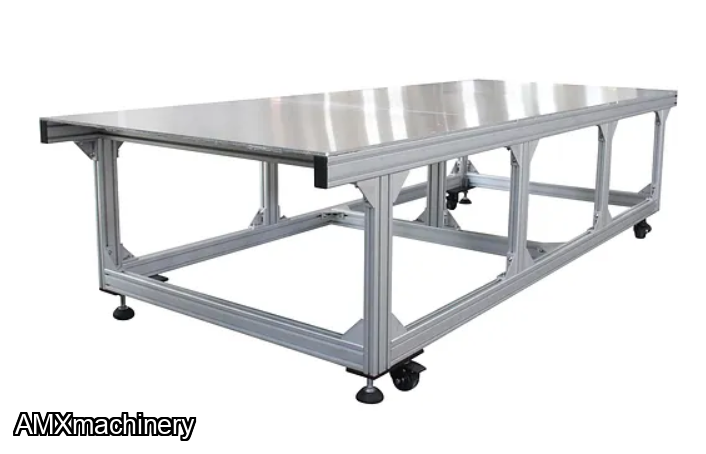

Infeed/outfeed table height | 32” |
Slitting blades | 6 pairs |
Slitting feed speed Shearing stroke | 57 FPM 35 |
