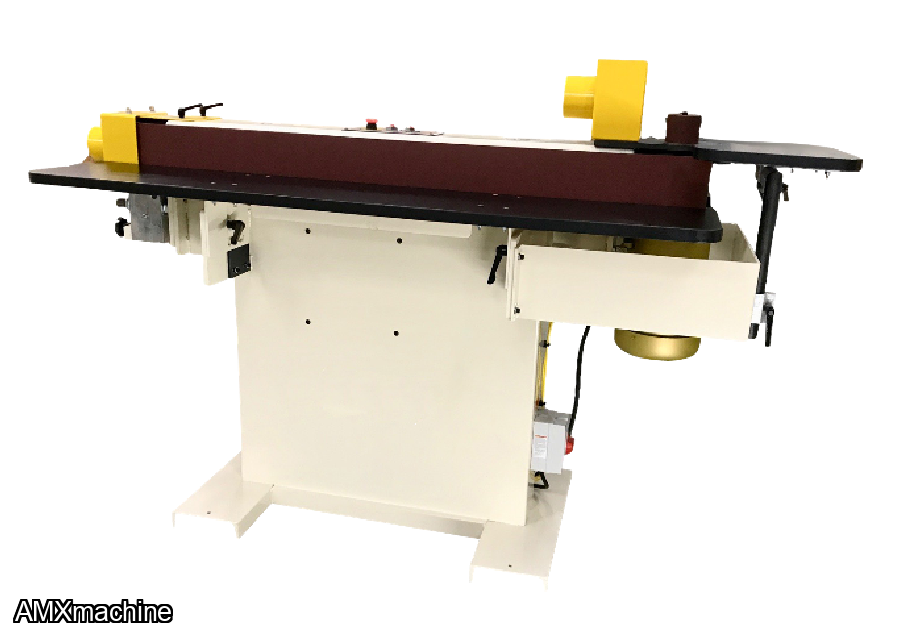

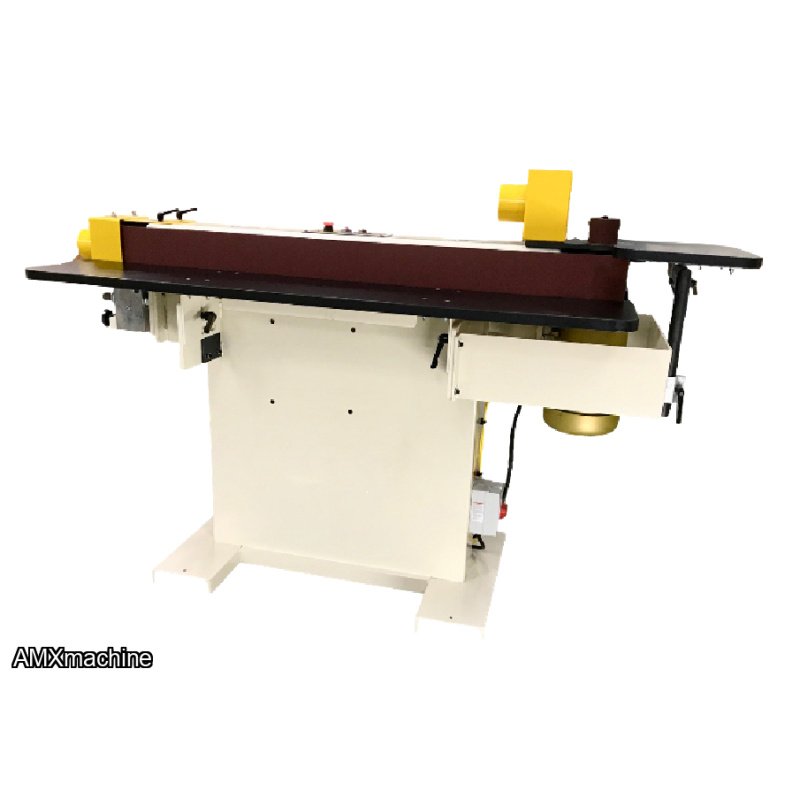

PARTE: 2RI-R933 -6" Double Sided Oscillating Edge Belt Sander
Description:
The entire platen assembly raises and lowers to give the operator use of the entire belt surface. Designed for use with edge finishing devices common to the furniture and custom woodworking industry. The ability to use the machine for a variety of edge finishing applications makes this the industry’s most universal edge belt sander.
Standard Features:
- Double Sided Ground Steel Platen
- Bias Tilting Tables
- Full Dust Hood with 4" End Openings for Dust Collection
- Pedestal Base
- Controls Accessible From Both Sides
- Magnetic Controls
- End Sanding Kit with 3" x 3" Sanding Drum
- Tiltable End Table
Technical Data and Specifications:
- Belt Size: 6" x 132"
- Platen Size: 6" x 49"
- Drive Wheel: 6" x 6"
- Drive Motor: 3 HP
- Electrical R901: 230V, 1Ø, 60Hz
- Electrical R903: 230V, 3Ø, 60Hz or 460V, 3Ø, 60Hz
- Air: N/A
- Work height: 36.5″
- Footprint: 31.5" x 80″
- Table Area: 12″ x 65″
