Description

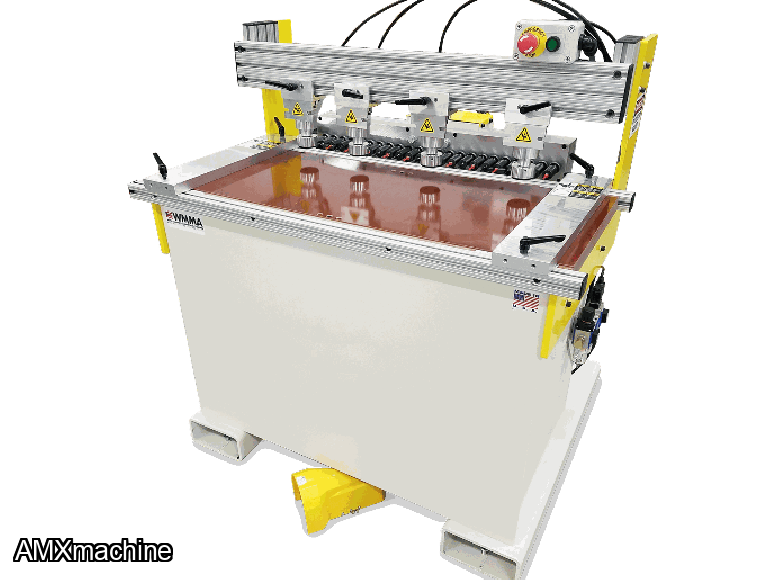

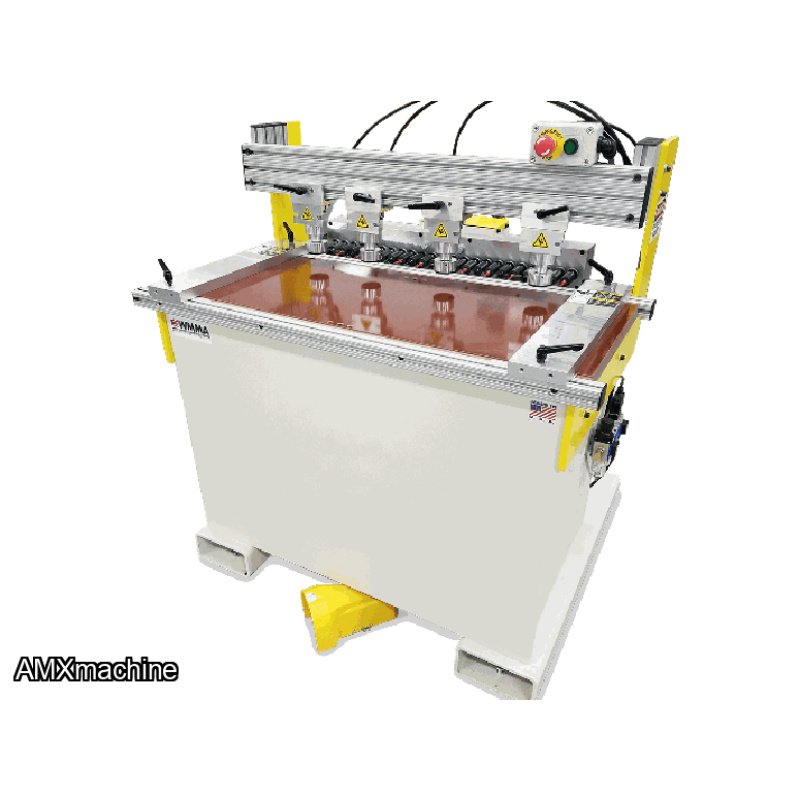

PARTE: 2RI-R823 - 23 Spindle Horizontal Boring Machine
Description:
Is a robust, 23 spindle horizontal borer, designed to be used as a supplemental borer for CNC nested based router and point-to-point borer applications, producing clean and accurate drilling of wood components. The workpiece is held firmly against the table by a pneumatic clamps, and there is full adjustability of the index stops, bed height, and depth of cut.
Standard Features:
- 23-Spindle Gear Driven Drill Head on 32mm Centers
- (12) Right Hand, (11) Left Hand
- 10mm Bored Female Collets With Set Screw Lock
- 0-2" Adjustable Boring Depth
- 0-3" Height Adjustment
- (2) End Boring Fences
- (4) 2.00" Bore Clamping Cylinder
- Carriage Adjusting Jack
- (1) Emergency Stop Button
- Foot Actuated Boring Cycle
- Tooling Not Included
Technical Data and Specifications:
- Drive Motors: 3 HP
- RPM: 3,450
- Spindle Centers: 32mm
- Collet Size: 10mm
- Maximum Material Thickness: 2.125"
- Electrical: 230V, 3Ø, 60Hz, 60A or 460V, 3Ø, 60Hz, 30A
- Air: 2 CFM at 80 – 100 PSI
- Work height: 33.5″
- Footprint: 49″ x 48″
- Table Area: 20″ x 42″
